22GH
Hydraulic Dovetail Gooseneck

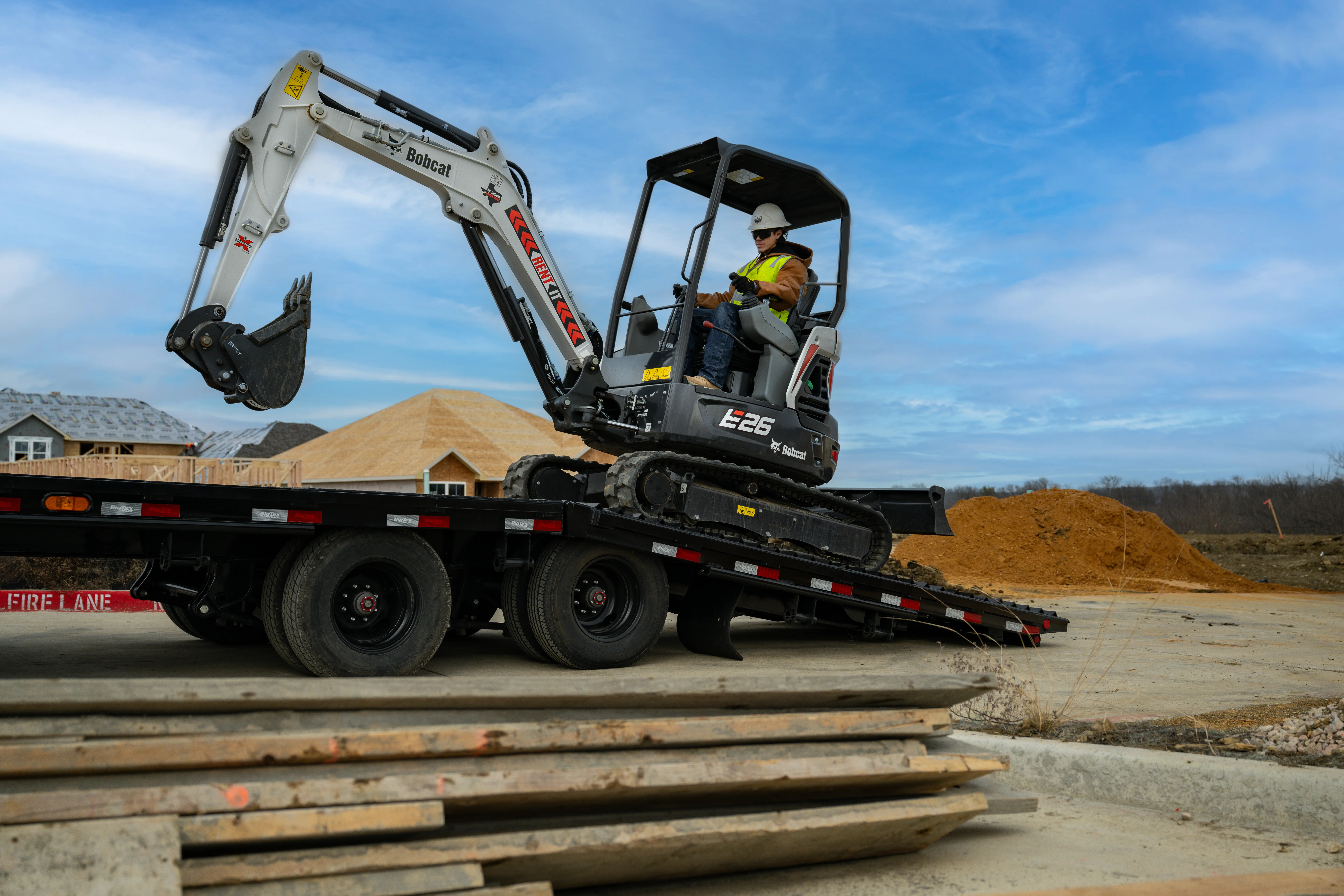

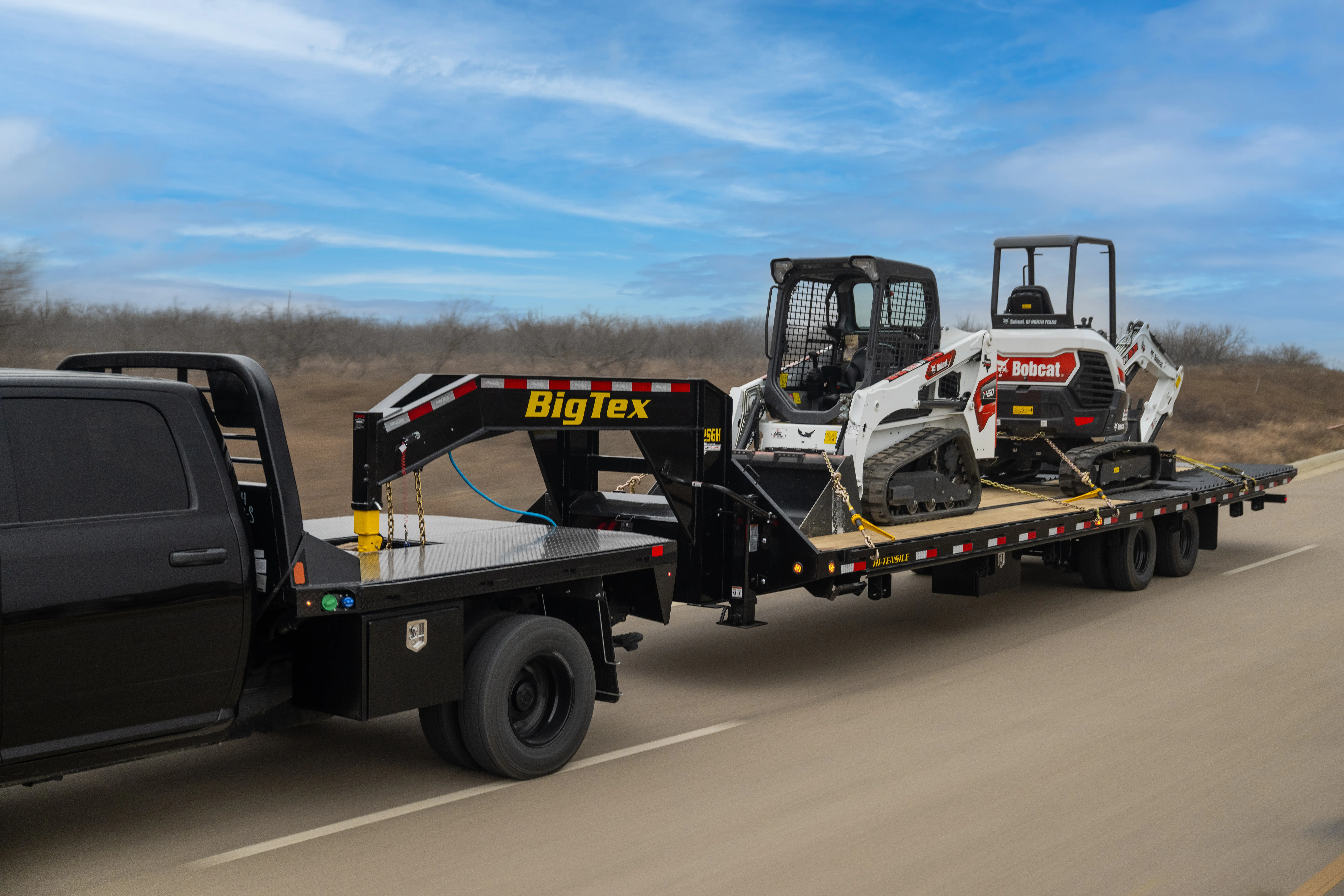

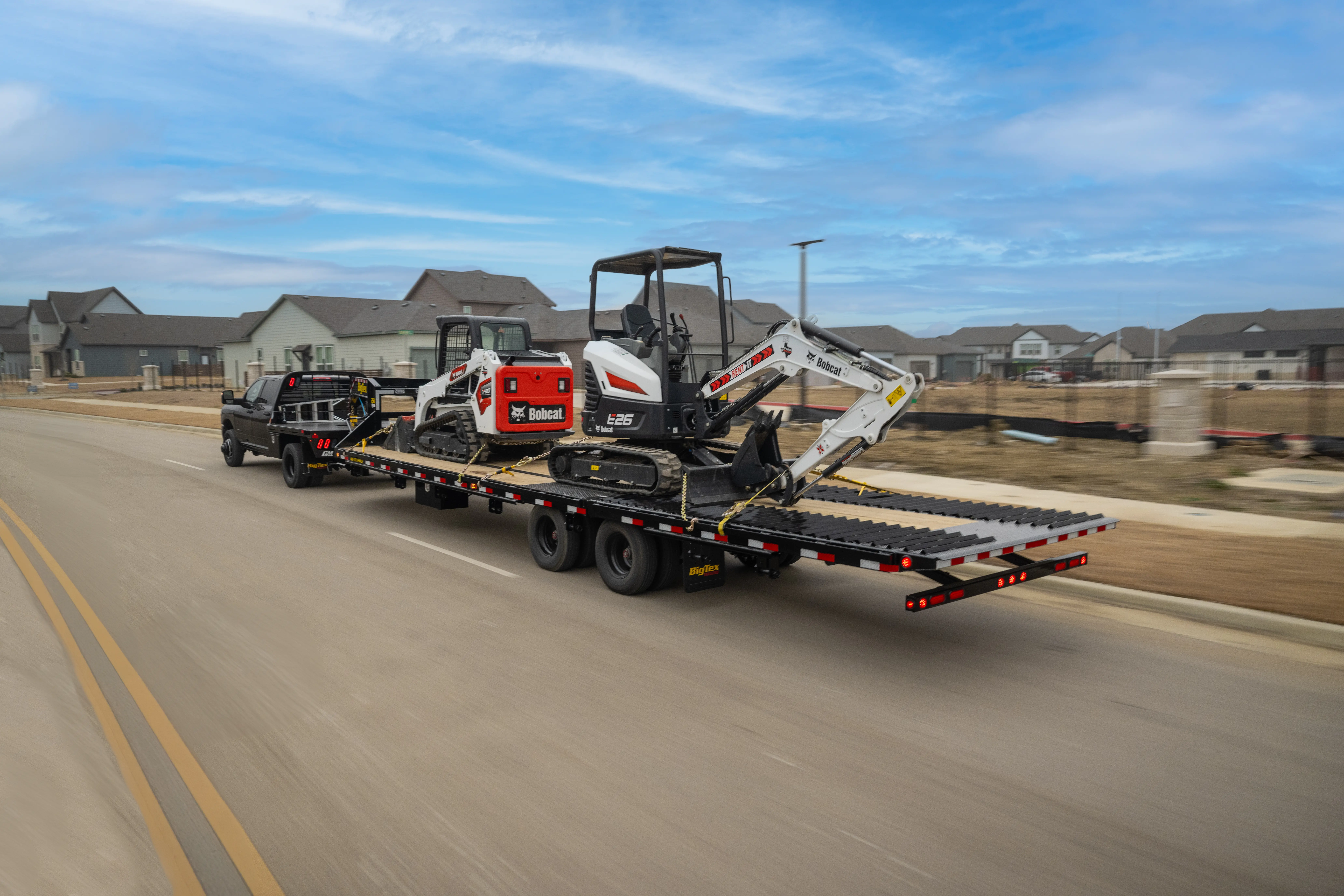

Built for serious hauling, the Big Tex 22GH Gooseneck Hydraulic Dovetail is equipped with a 12-foot hydraulic dovetail offering a 12K lift capacity and 10K hold capacity for smooth, controlled loading of heavy equipment. A heavy I-beam frame with torque tube construction delivers the durability needed for demanding jobs, while a sliding winch track adds tie-down flexibility and a mega-sized lockable toolbox keeps your gear secure and accessible. Tough, reliable, and built for the grind, this trailer is made to perform day after day.
With you for the long haul™
| Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | Tongue Length |
|---|---|---|---|---|---|---|---|---|---|---|
| 22GH-32D12A | Gooseneck | 23900 lbs | 10000 lbs | 8460 lbs | 15440 lbs | 32' | 102" | 384" | 221" | 99.25" |
| 22GH-35D12A | Gooseneck | 23900 lbs | 10000 lbs | 9380 lbs | 14,520 lbs | 35' | 102" | 420" | 257" | 99.25" |
| 22GH-40D12A | Gooseneck | 23900 lbs | 10000 lbs | 10910 lbs | 12990 lbs | 40' | 102" | 480" | 317" | 99.25" |
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 10,000# Dual Wheel w/ Oil Bath & Valcrum Caps | |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | Electric Over Hydraulic Brakes (Disc) |
| Suspension | Heavy-Duty 30,000#, Adjustable | |
| Coupler | 2-5/16" Ball, Adjustable Demco EZ Latch Coupler | |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | Dual 12,000# Drop-Leg Jack (Side Wind) | Dual Electric Over Hydraulic Jacks by Stillwell™ |
| Frame | 14" I-Beam, 22# | |
| Cross-Members | 3" Channel | |
| Floor | Treated Pine Floor | |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST235/80 R-16 Load Range-E 10 Ply Radial Tires | Tire Upgrade (ST235/80 R-16 LR-G) Includes Spare Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare |
| Bolt Pattern | 8-Bolt | |
| Spare Mount | Under-Deck Mounted Spare | |
| Spare Tire | ST235/80 R-16 Load Range E (Included)` | |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black | |
| Rubrail | 3/8” Heavy Duty Rub Rail on Both Sides | |
| Break-Away Kit | Complete System with Breakaway Cable | |
| Mudflaps | Standard | |

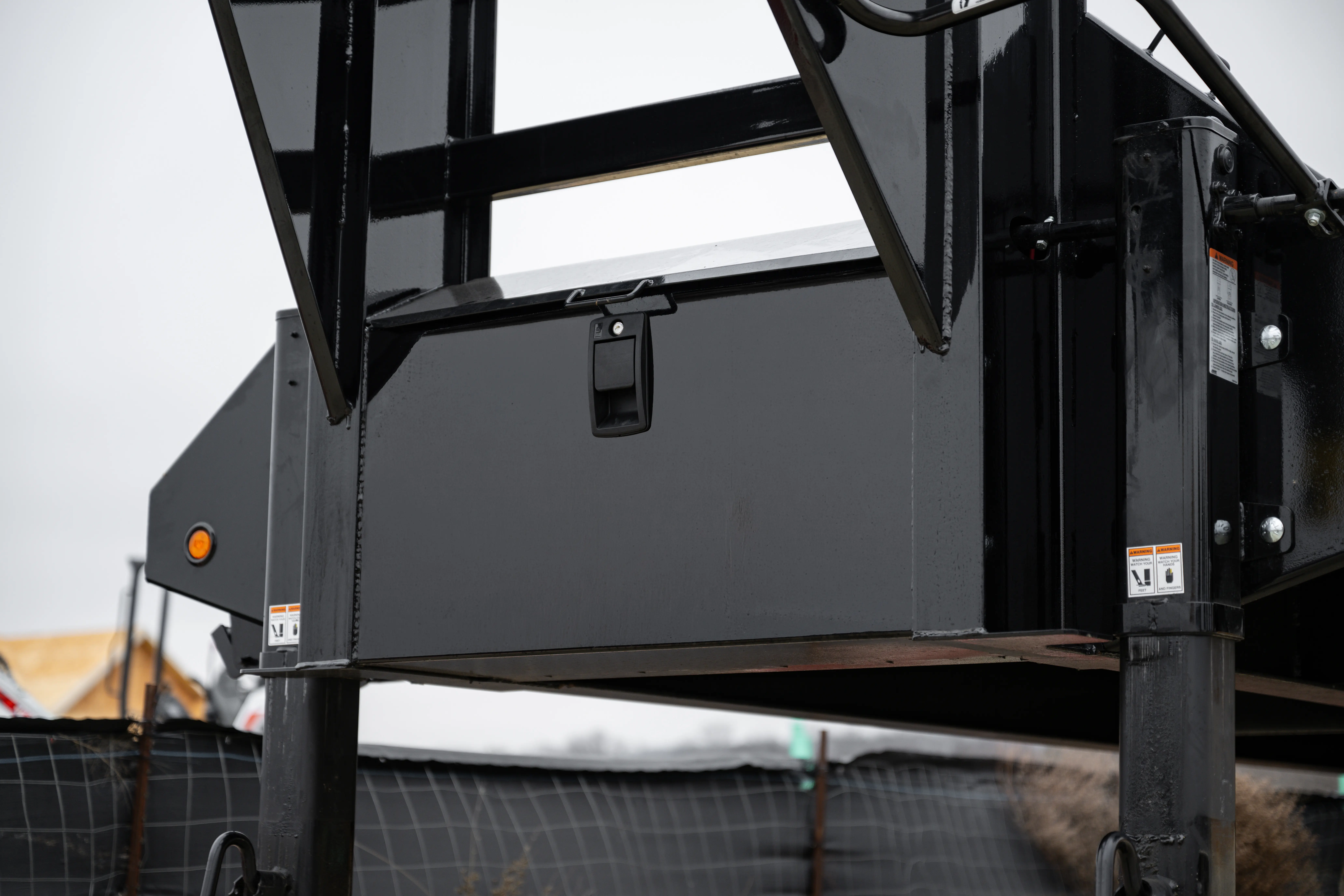

| Storage | Lockable Side Mount Tool Box/ Housing Power Unit Box Lockable Toolbox between uprights | |

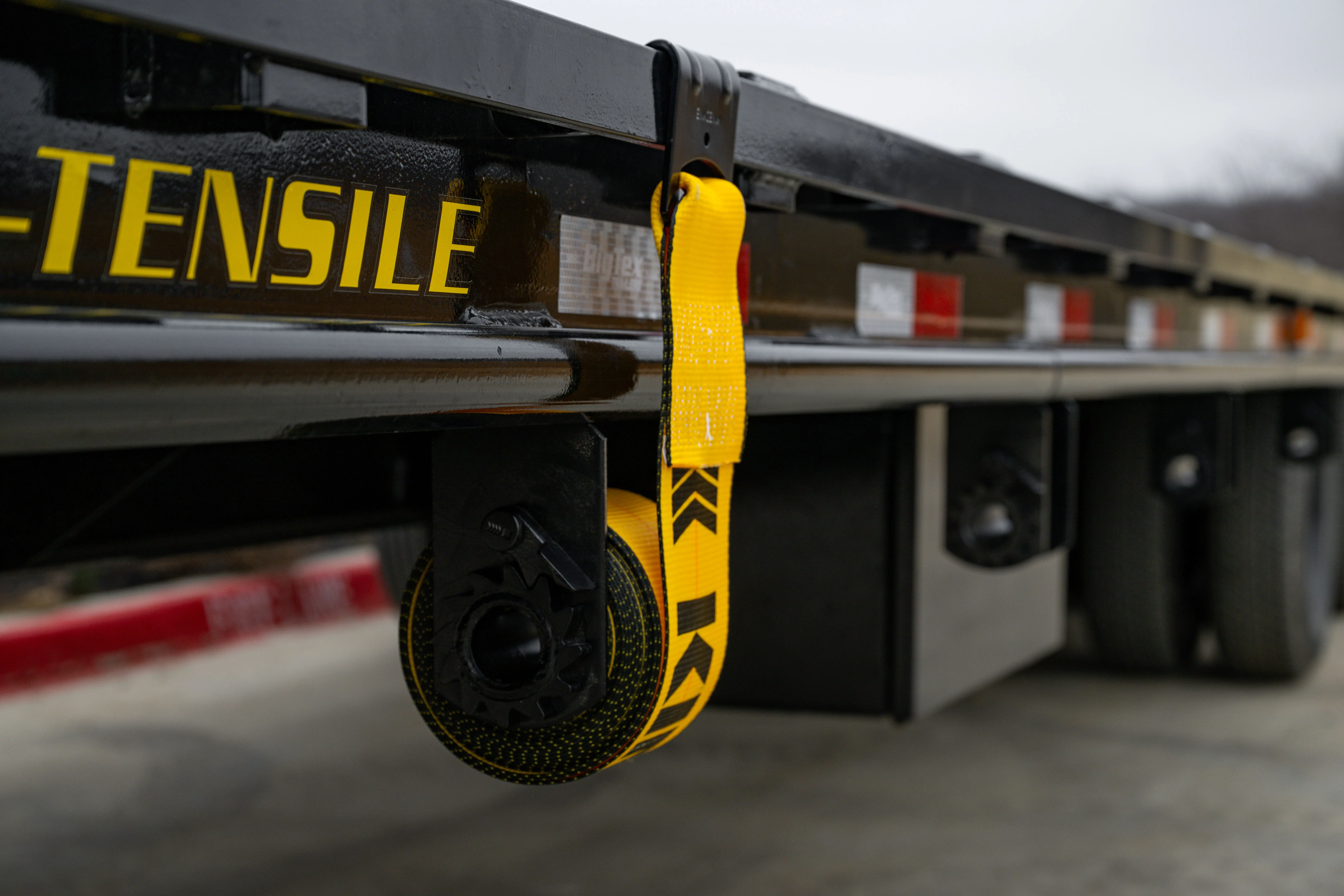

| Cargo Winch | Sliding Winch Track | 4" Sliding Winch (Each) 4" Weld-On Winch (Each) |

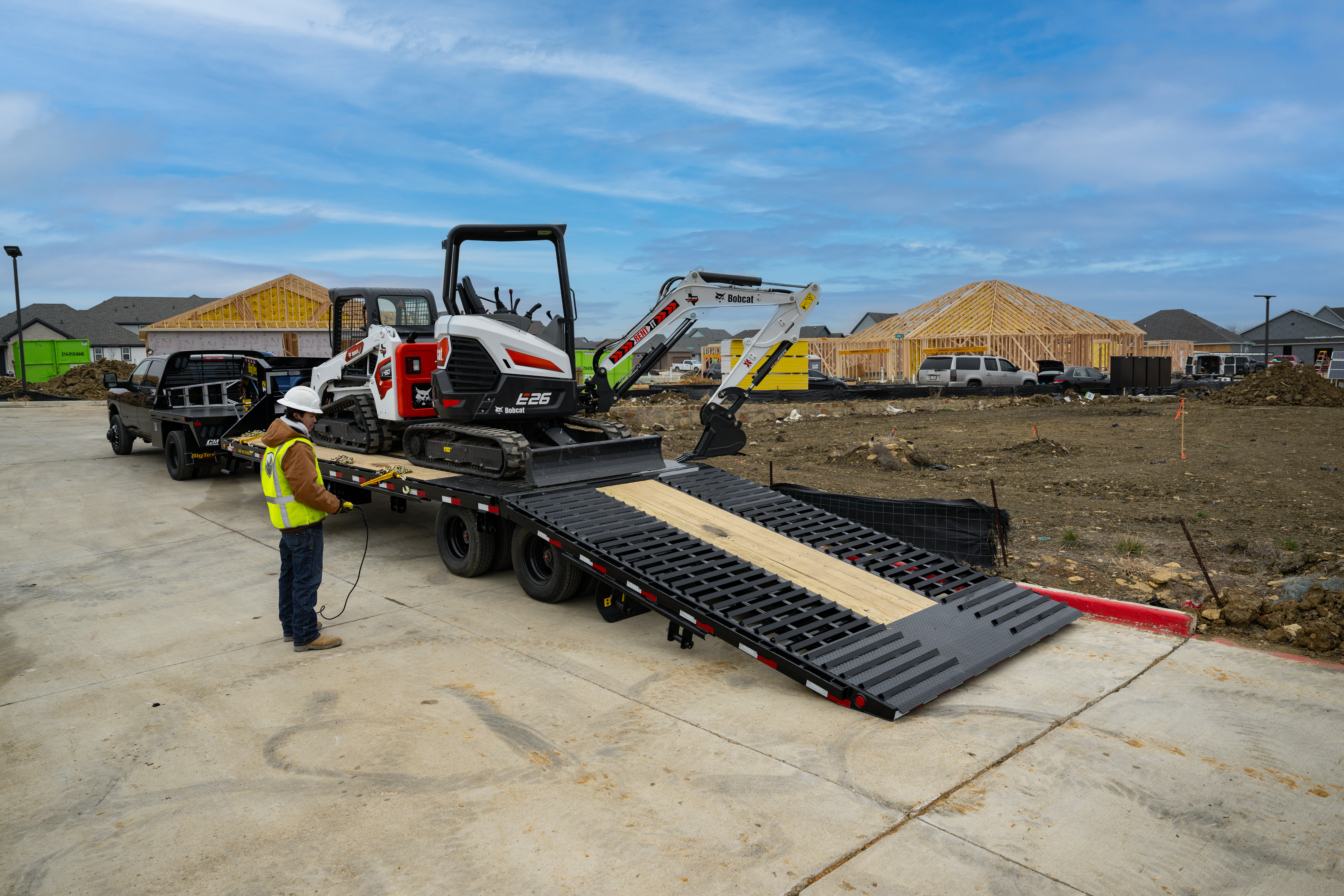

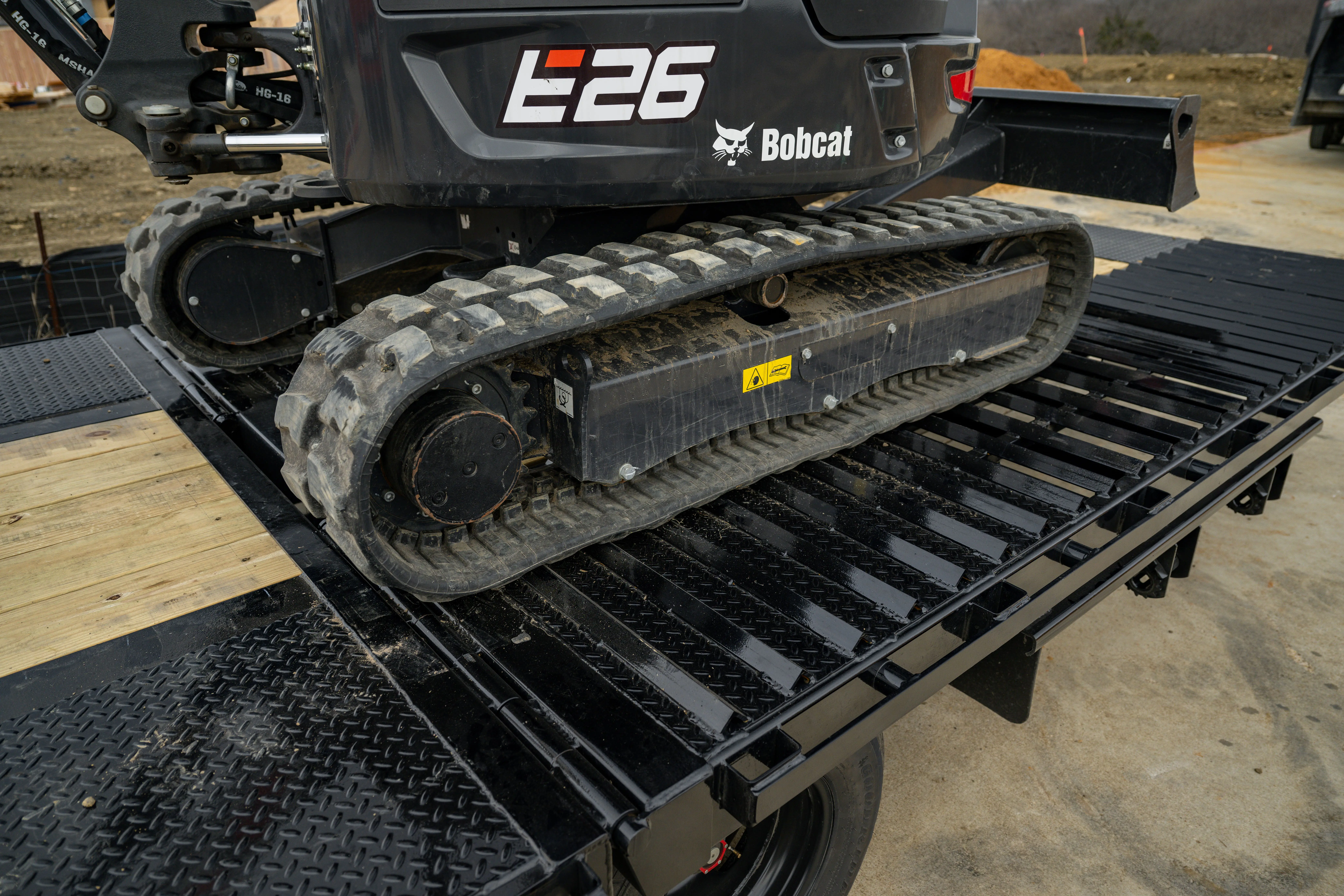

| Hydraulic Dovetail | 12' Cleated Hydraulic Dovetail (12,000# Lifting, 10,000# Hold, 12-Degree Tilt) | |
| Pipe Chain Spools | 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets | 4" x 30' Strap Extra 5/8" D-Rings |
| Steps & Handles | (2) Side Bed Steps + Handles | |

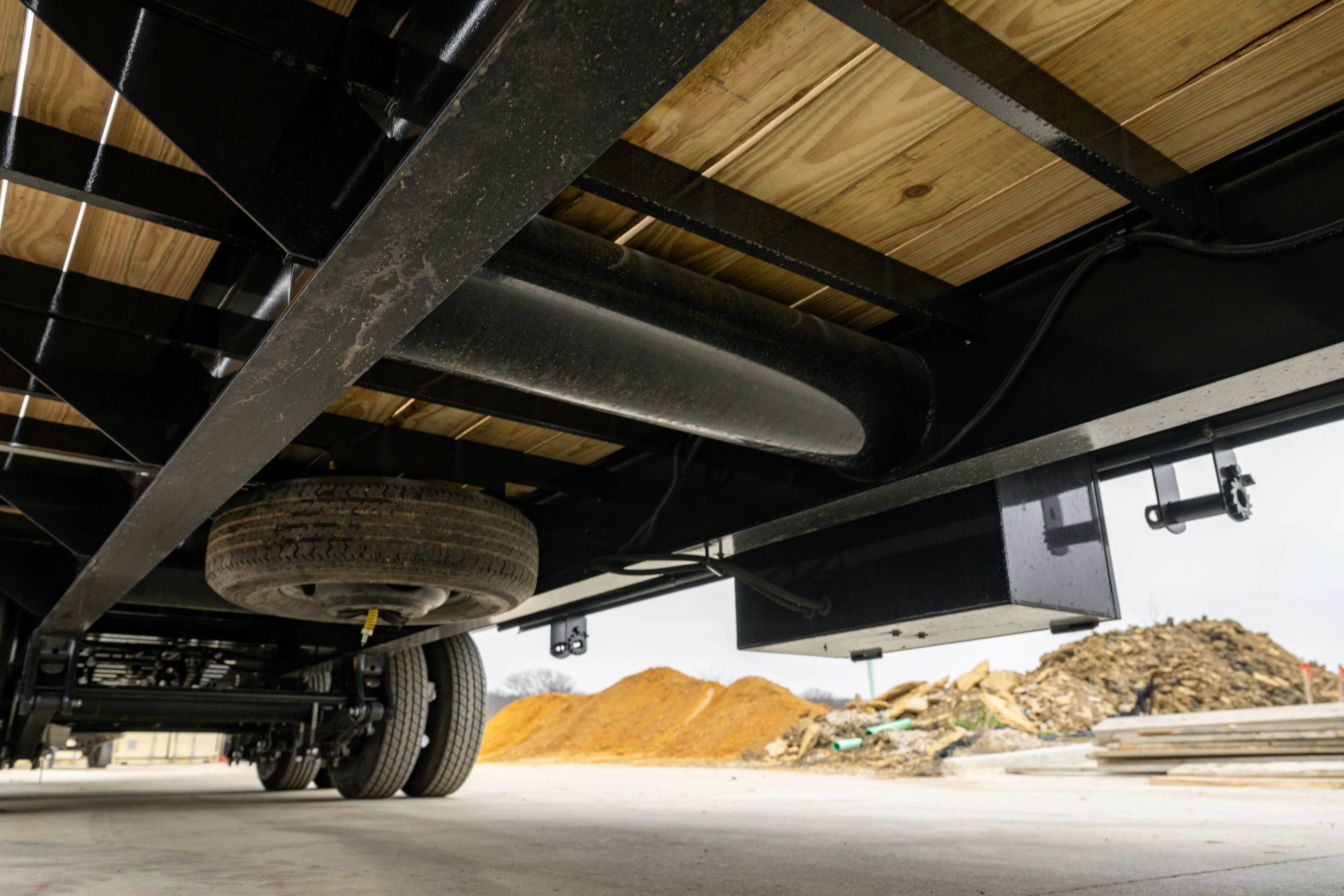

| Torque Tube | Standard Equipped |
