Trailers / Dump Trailers / Compact Dump Trailers

50SR 50SR

50SR

Single Axle Single Ram Dump

Don’t underestimate the small yet mighty 50SR Single Axle Single Ram Dump Trailer, a light-duty trailer built to haul mulch, dirt, and gravel for homeowners, farmers, and small-scale commercial purposes. An entry-level dump trailer offering ease-of-use and accessibility, the 50SR features a compact size that’s designed to get in and around tight spaces to effectively transport and dump lighter loads. And with premium brand axles and forward self-adjusting electric brakes, it’s packed with the same conveniences that bigger trailers have. In other words, never judge a trailer by its size.

With you for the long haul™

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
50SR-08-5WDD Bumperpull 5000 lbs 5080 lbs 1400 lbs 3600 lbs 8' 60" 120 71-1/2" 48-1/2" 47-5/8"

Standard Feature Available Options
Axles 1 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Forward Self-Adjusting Electric Brakes
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Tongue 5" Channel
Coupler 2-5/16” Stamped A-Frame
Safety Chains 1/4” Grd. 70 w/Safety Latch Hook (2 each)
Jack 2,000# Top Wind
Frame 5" Channel
Cross-Members 2" Channel, 17" Centers
Floor 16 Gauge Smooth Steel
Fenders 9” x 36” 16 Ga. Roll Formed
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST225/75 R-15 Load Range D Radial Tires
Bolt Pattern 6-Lug
Spare Tire Not Included Spare Tire Upgrade (ST225/75R-15 LR-D)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Tie-Downs Along Sides and Rear for Cargo Control
Break-Away Kit Complete System with Breakaway Cable
Battery 12V Deep Cycle
Charger 5A 110V on Board Battery Charger
Power Power Up/Power Down & Gravity Down Hydraulic Pump
Ram Self-Contained Single Cylinder Lift
Sides 20" Tall Sides (16-Gauge)
Storage Lockable Pump and Battery Box mounted in Front of Bed
Tarp Not Included Crank Style Roll Tarp
Top Rail 2" x 2" Square Tubing

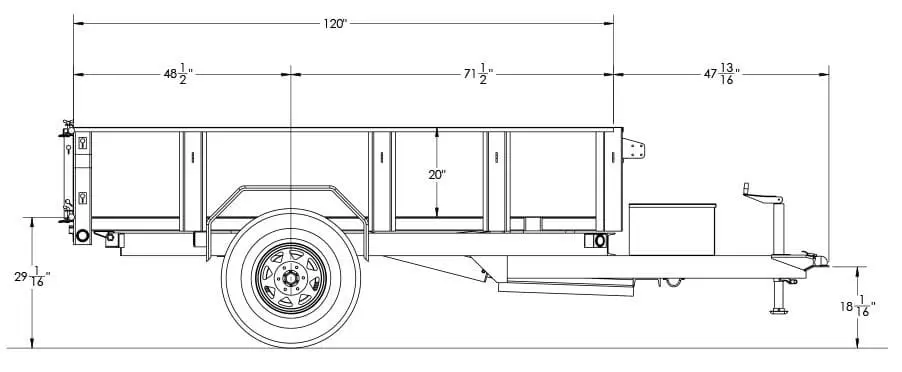

https://www-dev.bigtextrailers.com/wp-content/uploads/2023/07/50sr_specdiagram.jpg

WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
